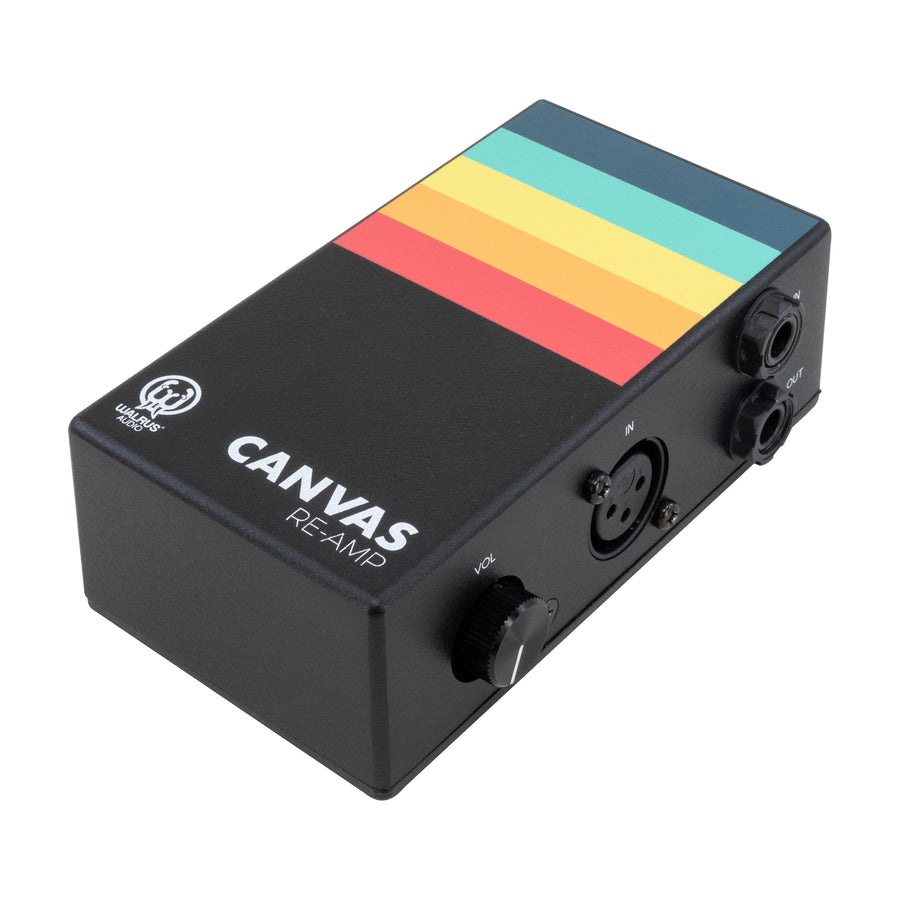

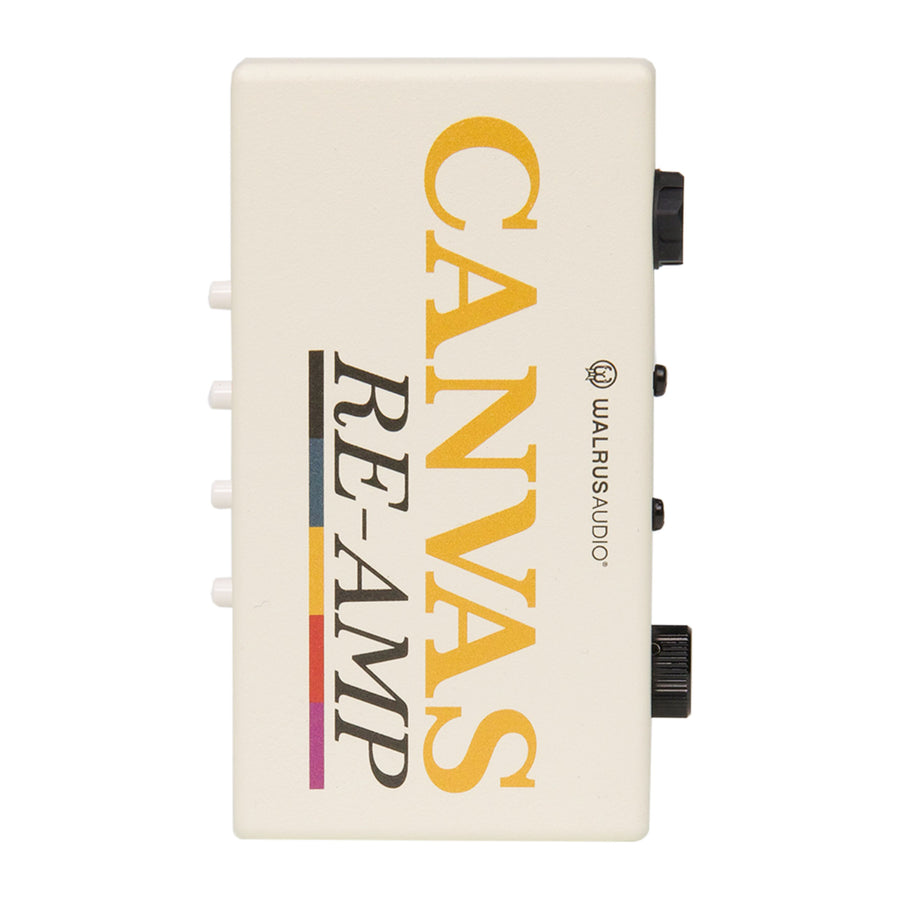

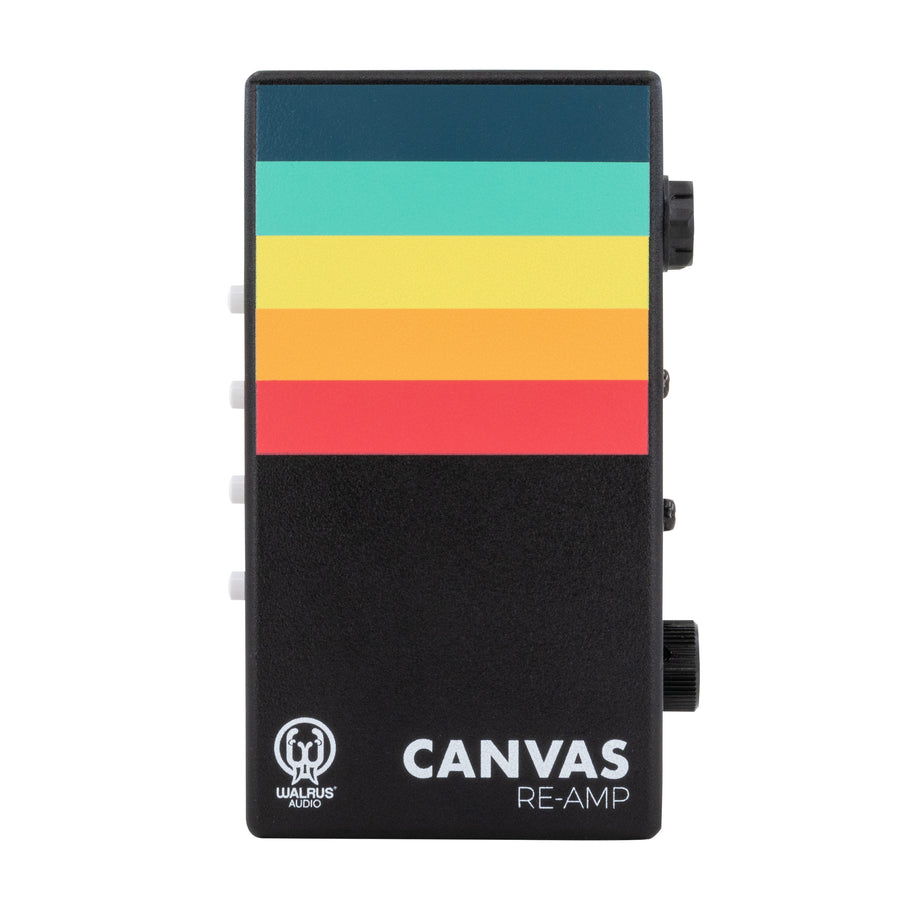

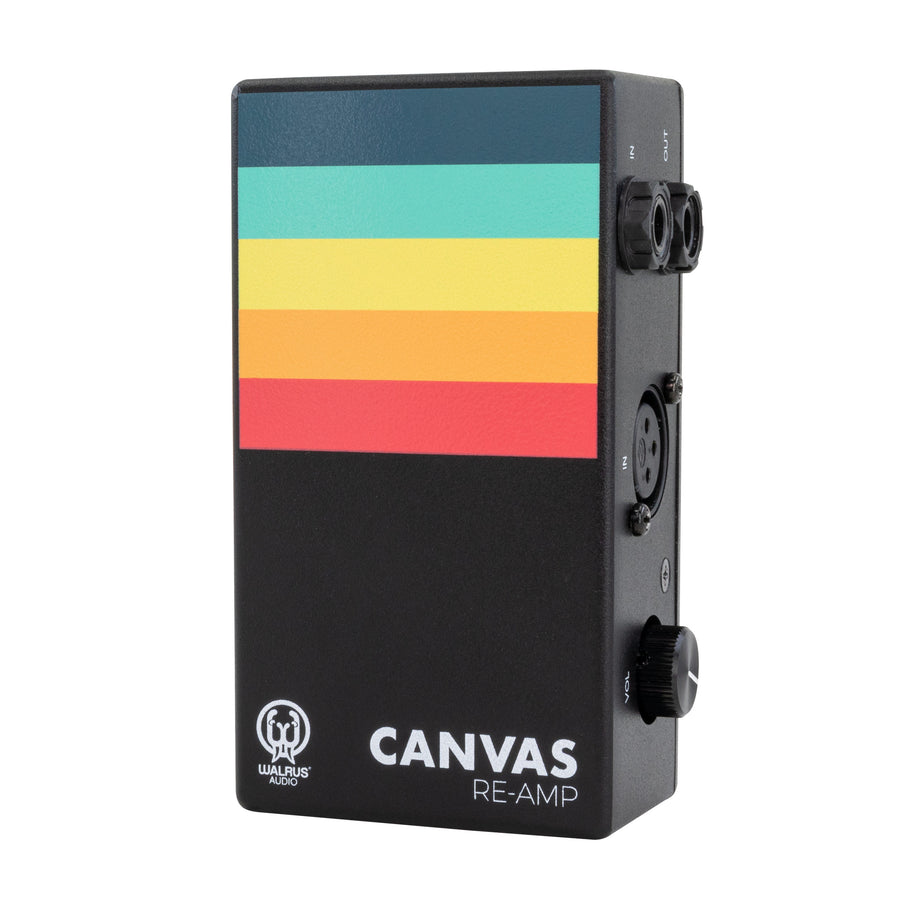

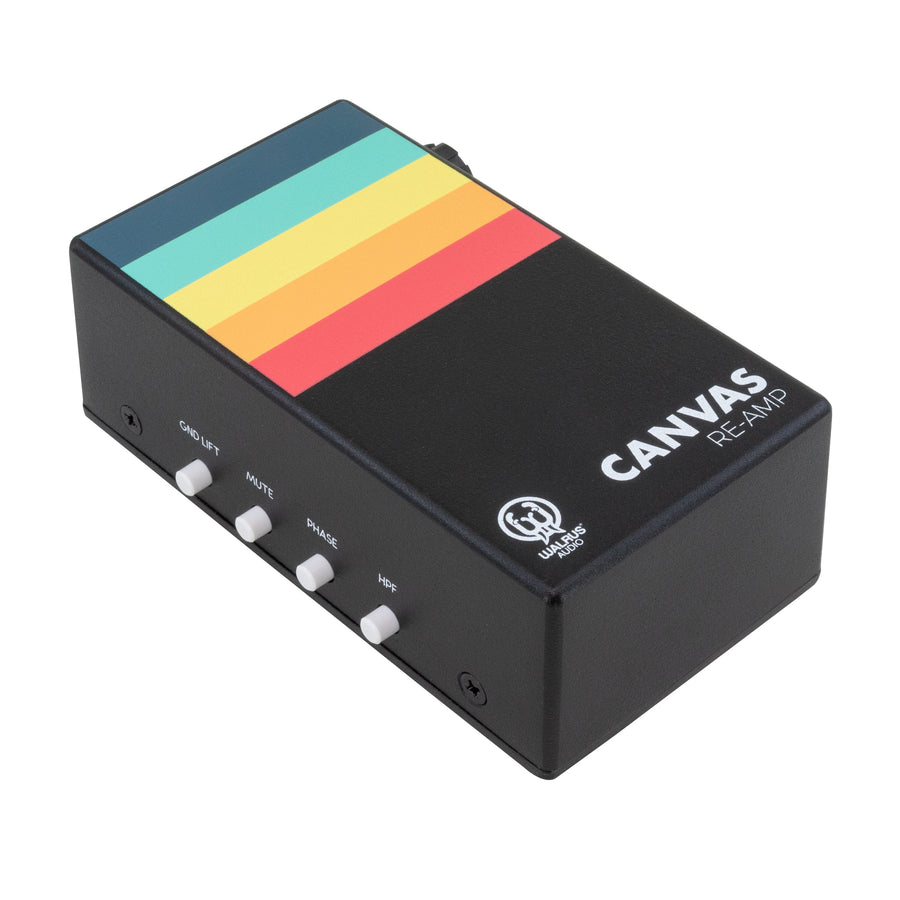

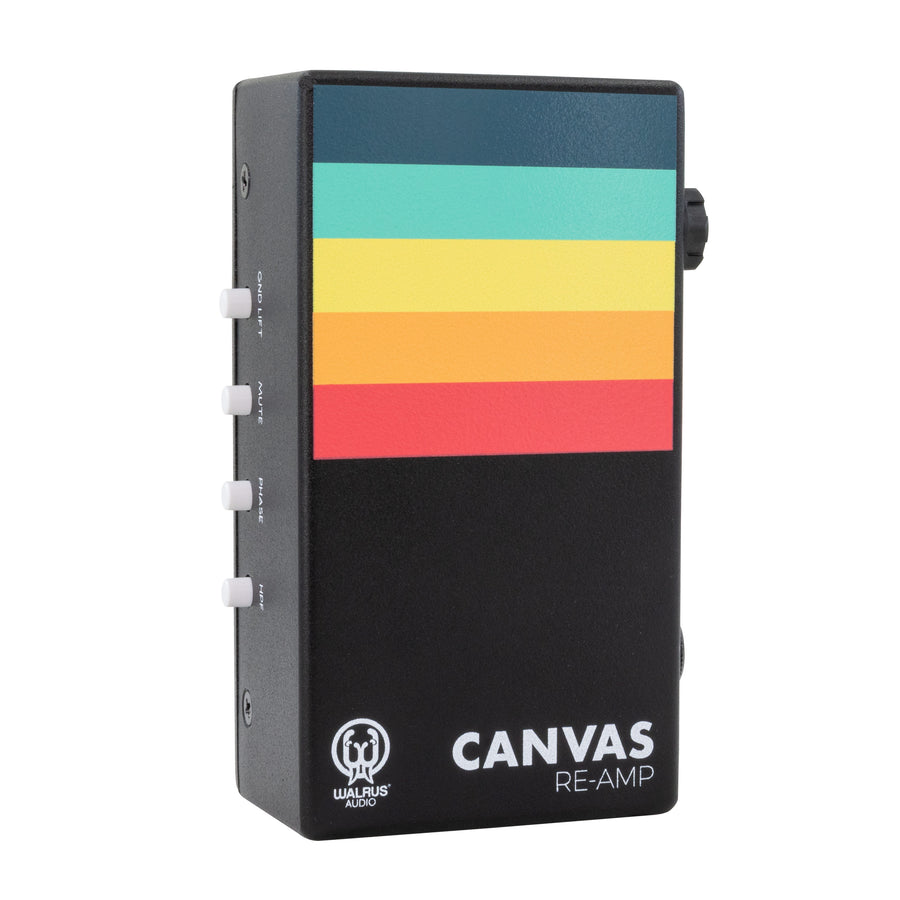

Canvas Passive Re-Amp

$149.99

Adding another tool to the musical paint pallet, Walrus Audio is creating another way to design your tone with the Canvas Series Passive Re-Amp. The Re-Amp is a studio tool designed to send recorded guitar, drums, or other instrument tracks from your recording session through pedals and effects, or different amp combinations. The Re-Amp makes it’s appearance to facilitate all-new ways to experiment with your songs.

$149.99
Title

Adding another tool to the musical paint pallet, Walrus Audio is creating another way to design your tone with the Canvas Series Passive Re-Amp. The Re-Amp is a studio tool designed to send recorded guitar, drums, or other instrument tracks from your recording session through pedals and effects, or different amp combinations. The Re-Amp makes it’s appearance to facilitate all-new ways to experiment with your songs.


Artists and producers can save time on tracking sessions by recording dry tracks first, then using Canvas Re-Amp’s custom transformer to convert line-level signals, optimizing them to work with amps and guitar pedals of any kind to explore limitless tones and sounds.


Using a Re-Amp

1. From your DAW, audio track goes into the Canvas Re-Amp.

2. Out from Re-Amp into pedals or mic'd amp.

3. Out from pedals / amp back into DAW.



Canvas Re-Amp Features

  • Frequency Response: 20Hz To 20kHz
  • THD+N: 0.07% @ 20Hz / +4dBu Input 0.001% @ 1kHz / +4dBu Input
  • Maximum Input Level: +21dBu @ 20Hz
  • Noise Floor: -116dBu
  • Signal To Noise Ratio: 114dB @ 1kHz

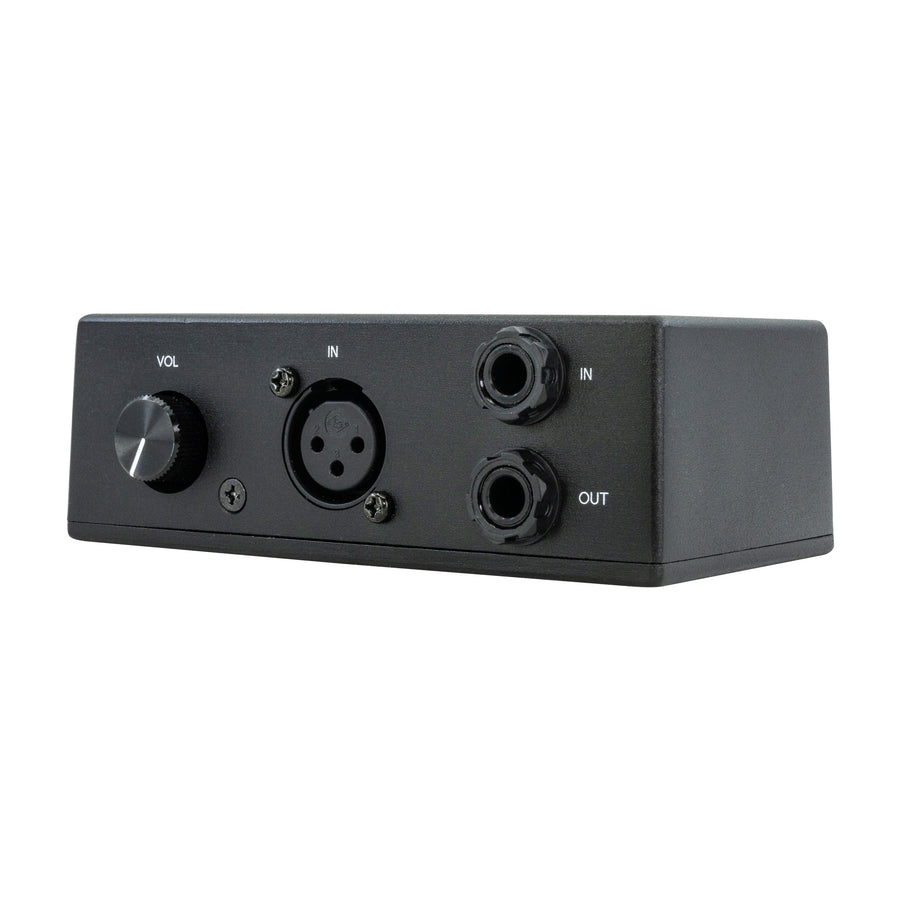

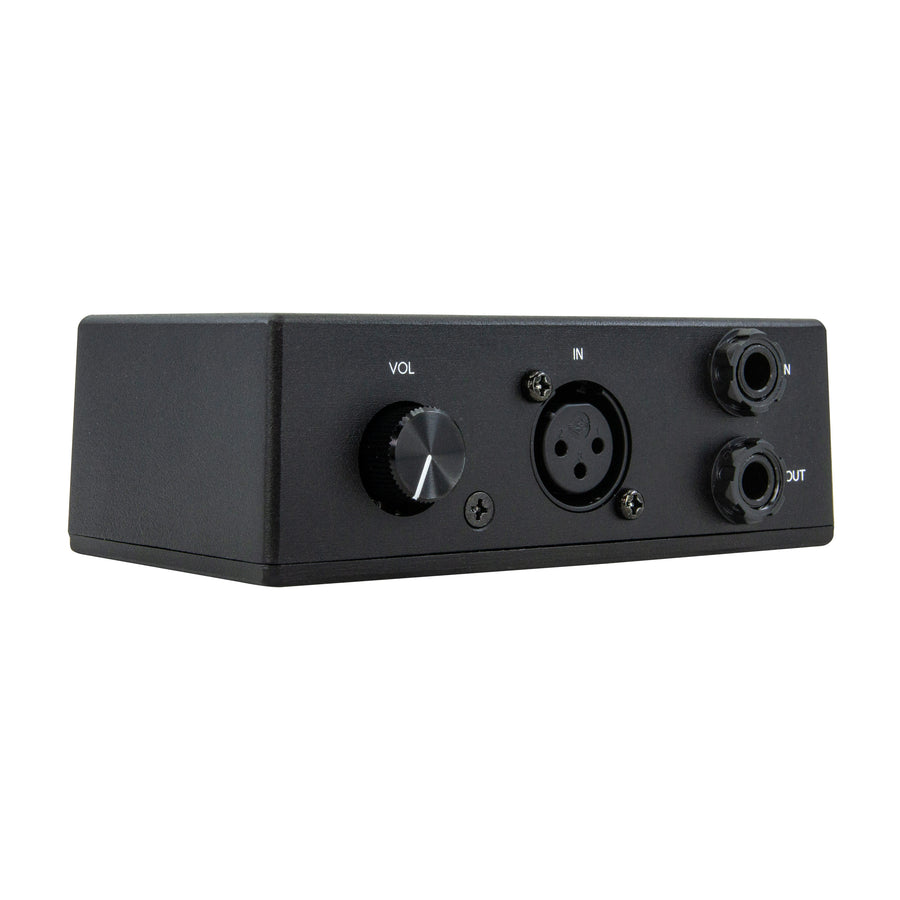

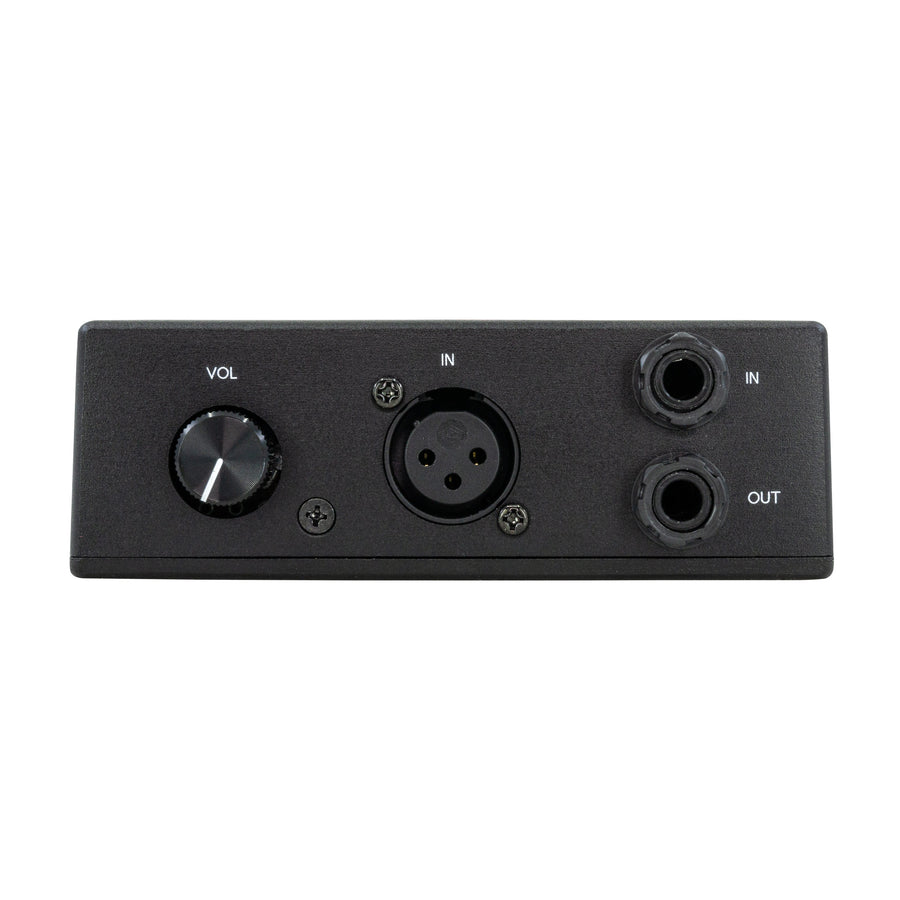

  • Input: Balanced Line-Level
  • Input Impedance: 3k Ohms
  • Output: Unbalanced Instrumental-Level
  • Output Impedance: 2.5k Ohms
  • Common Mode Rejection Ratio:79dB @ 20Hz / +4dBu Input



      • Frequency Response: 20Hz To 20kHz
      • THD+N: 0.07% @ 20Hz / +4dBu Input 0.001% @ 1kHz / +4dBu Input
      • Maximum Input Level: +21dBu @ 20Hz
      • Noise Floor: -116dBu
      • Signal To Noise Ratio: 114dB @ 1kHz
      • Input: Balanced Line-Level
      • Input Impedance: 3k Ohms
      • Output: Unbalanced Instrumental-Level
      • Output Impedance: 2.5k Ohms
      • Common Mode Rejection Ratio:79dB @ 20Hz / +4dBu Input
      • Power Requirement : None - Passive
      • Audio Circuit: Transformer Isolated
